Answer : A

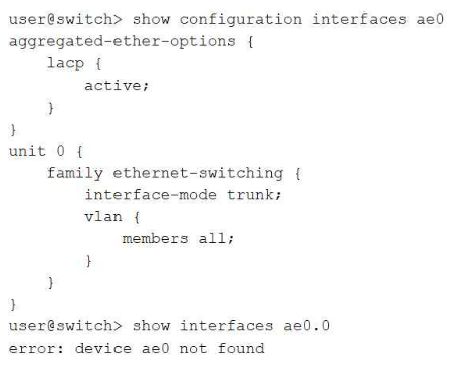

On EX Series switches, aggregated Ethernet (ae) interfaces do not exist by default; before any ae interface can be created, referenced, or brought into service, an administrator must first reserve the desired number of aggregated Ethernet device slots by configuring set chassis aggregated-devices ethernet device-count number at the [edit chassis] hierarchy. This statement allocates the internal resources needed for that many ae interfaces to exist as valid, configurable objects; until it is committed, any interface-level configuration referencing ae0 (such as the aggregated-ether-options and family ethernet-switching stanzas shown in the exhibit) is accepted syntactically by the CLI but never actually instantiates a live ae0 device, which is exactly why show interfaces ae0.0 returns 'device ae0 not found' despite the interface appearing fully configured. Increasing the device-count to at least 1 (or higher, to cover the number of LAG bundles planned) immediately resolves this and allows ae0 to appear as an operational interface once its member links are also associated with it. This is a foundational and frequently overlooked prerequisite step in LAG deployment on Juniper switches. There is no separate licensing requirement for aggregated Ethernet functionality on EX Series switches, a reboot is not needed since the chassis statement takes effect upon commit, and the LACP mode (active versus passive) is unrelated to whether the ae interface object itself exists in the first place. Reference topics: Junos Enterprise Switching -- Link Aggregation, Configuring the Aggregated Ethernet Device Count.

Answer : A, B

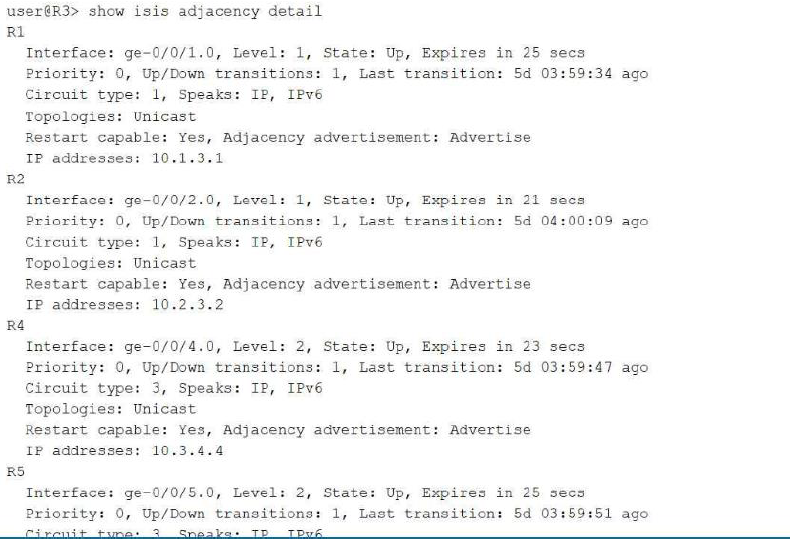

This detailed adjacency output shows R3 maintaining four separate, fully Up adjacencies, evenly split between the two IS-IS levels. R1 and R2 are both formed at Level 1, confirming that R3 is directly adjacent to exactly two Level 1 neighbors within its local area, which validates that statement. R4 and R5 are both formed at Level 2, and Level 2 adjacencies are, by definition, part of the IS-IS backbone that interconnects areas; a router maintaining any Level 2 adjacency is by that fact participating in and connected to the Level 2 backbone, confirming R3's backbone connectivity as well. Every one of the four listed adjacencies explicitly shows 'Speaks: IP, IPv6' in its detail output, which is Junos's way of indicating that both the IPv4 and IPv6 address families have been successfully negotiated and are active over that circuit; this directly contradicts, rather than supports, the claim that IPv6 is disabled on these neighbors --- if IPv6 were disabled, the Speaks field would list only IP. Regarding authentication, the output contains no field, flag, or indication whatsoever referencing authentication configuration or state for the R5 adjacency (or any adjacency); Junos would typically surface authentication-related information separately if it were configured and relevant, and its complete absence here means no basis exists in the exhibit to conclude authentication is required for that specific adjacency. Reference topics: Junos Enterprise Routing -- IS-IS, Level 1 and Level 2 Adjacencies and Address Family Negotiation.

Answer : A

Root bridge election is based on comparing each switch's full Bridge Identifier, which combines the bridge priority value with the switch's MAC address, with priority always evaluated first and MAC address serving strictly as a tiebreaker when two or more switches present identical priority values. In this scenario, the network has been left entirely at the default spanning-tree configuration, meaning every switch is operating at the standard IEEE and Junos default bridge priority of 32768; since all three switches share the exact same priority value, the comparison necessarily falls through to the MAC address tiebreak, where the switch with the numerically lowest MAC address wins the election. Comparing the three addresses shown --- 00:1a:2b:3c:4d:01, 00:1a:2b:3c:4d:02, and 00:1a:2b:3c:4d:03 --- Switch A's address is the lowest, since only the final octet differs and 01 is less than both 02 and 03, making Switch A the elected root bridge. RSTP uses the identical Bridge ID comparison mechanism as legacy STP for root election, so there is no special 'median MAC address' rule that applies uniquely under RSTP, making that distractor factually invalid regardless of protocol version. The election process also does not require any manual bridge priority configuration to complete; the default priority value is entirely sufficient on its own to allow a deterministic election to occur, since default priorities are still numerically comparable Bridge IDs. Reference topics: Junos Enterprise Switching -- Spanning Tree Protocols, Default Priority and MAC Address Tiebreaking.

Answer : D

Each of the 24 end-device-facing interfaces in this scenario needs to carry traffic for exactly one VLAN, and the end devices themselves are ordinary hosts that neither expect nor generate 802.1Q-tagged frames. This is precisely the definition of an access port in Junos: family ethernet-switching interface-mode is set to access, and a single vlan members statement assigns the port to VLAN 70. Access mode ensures frames egressing toward the host are untagged and any frames received are implicitly treated as belonging to the configured VLAN, which is both simpler to manage and more efficient than trunking, since access ports do not carry the 802.1Q tag overhead nor process VLAN pruning logic relevant only to multi-VLAN links. Trunk mode, by contrast, is reserved for switch-to-switch or switch-to-router links that must simultaneously carry frames for multiple VLANs, such as the uplink toward the distribution switch that transports VLANs 30, 50, and 70 together --- configuring the 24 host-facing ports as trunks (with or without a native VLAN) would be functionally incorrect and operationally wasteful, since end devices have no need to interpret VLAN tags. There is also no such behavior in Junos where VLAN-ID numeric value dictates default port behavior, making the 'no configuration needed' option a distractor with no basis in EX Series switching architecture. Reference topics: Junos Enterprise Switching -- VLANs, Configuring Access and Trunk Port Modes.

Answer : A

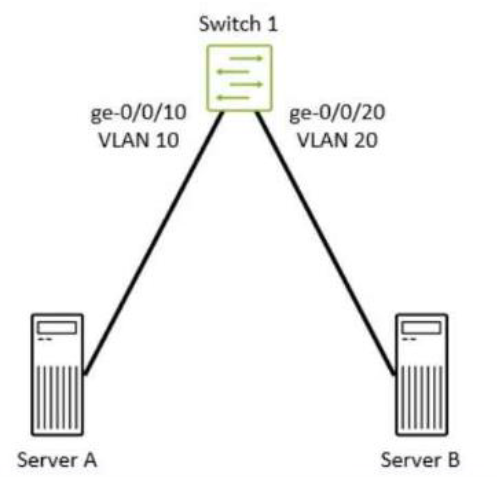

Because Server A resides in VLAN 10 and Server B resides in VLAN 20, traffic between them cannot remain a purely Layer 2 switched flow; it must be routed between the two VLANs, which on Switch 1 means the packet traverses the switch's internal routing engine (via an IRB interface) between the ingress and egress switching stages. Junos processes firewall filters along this path in a strict, layered order that mirrors the packet's actual journey through the device. First, any filter applied at the physical ingress port level (Rx-Port) is evaluated as the frame first arrives on ge-0/0/10. Next, any filter applied to the ingress VLAN (Rx-VLAN, i.e., VLAN 10) is evaluated as the frame is classified into its source broadcast domain. Because the destination subnet requires routing, the packet is then handed to the routing engine, where any input/ingress routed filter (Rx-Router) applied to the receiving IRB interface is evaluated next, followed by any output/egress routed filter (Tx-Router) applied as the now-routed packet is handed from the routing engine back out toward VLAN 20. Finally, the packet passes through any egress VLAN filter (Tx-VLAN, for VLAN 20) and then the egress physical port filter (Tx-Port) on ge-0/0/20 immediately before transmission to Server B. This complete six-stage sequence --- Rx-Port, Rx-VLAN, Rx-Router, Tx-Router, Tx-VLAN, Tx-Port --- reflects every filter-evaluation checkpoint a routed, inter-VLAN packet passes through on an EX Series Layer 3 switch. Reference topics: Junos Enterprise Switching -- Layer 2 Switching and Firewall Filter Processing Order for Routed VLAN Traffic.
