Get HPE7-A07 Exam Practice Questions - Real and Updated

Answer : C

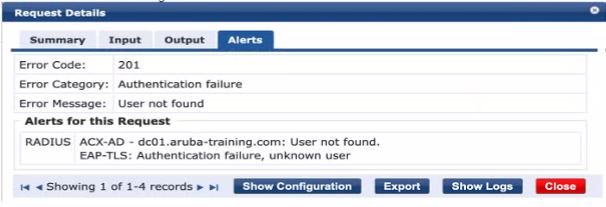

The error message 'User not found' indicates that the authentication source, in this case, Active Directory (AD), is not able to locate the user account based on the current search parameters. This often occurs when the User Principal Name (UPN) that the client is using to authenticate is not included in the search parameters of the AD authentication source within ClearPass. By modifying the AD authentication source to include the UPN in the search, ClearPass will be able to correctly locate the user account and proceed with the authentication using the valid client certificates.

Answer : A, E

VoIP quality can be negatively impacted by insufficient cell overlap in AP deployment plans, which can cause poor handoffs between APs as a user moves around. This results in a degraded VoIP experience. Additionally, roaming into an area with continuous Zigbee operation can cause interference with the 5GHz frequency band, further contributing to poor VoIP call quality. The Zigbee communication protocol operates on the same frequency band as Wi-Fi and can introduce noise and interference, which leads to a reduced MOS score, as reported by the VoIP engineer.

Answer : C

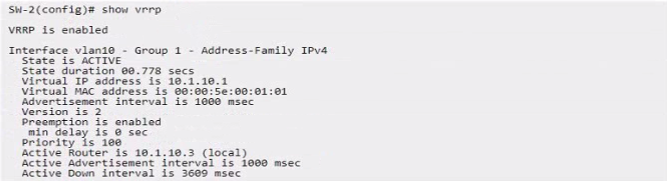

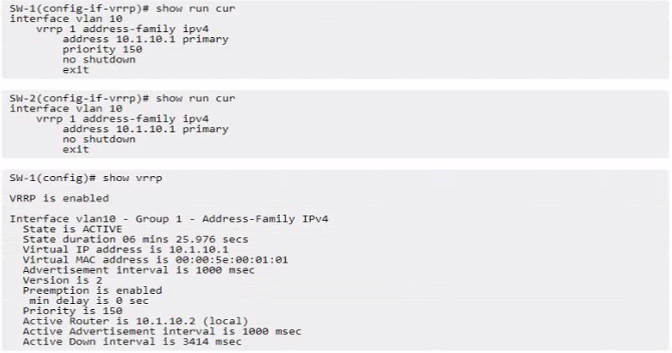

In VRRP (Virtual Router Redundancy Protocol), only one switch should be the primary (master) for a given virtual IP address, with the other switches being backups. If both switches are showing as active, it suggests a misconfiguration where both are set to act as the primary for the same VRRP group. The exhibits provided indicate that both switches believe they are the active or primary for the VRRP group, which is an incorrect configuration.

Answer : B

The Change of Authorization (CoA) messages are used in network access control scenarios and are typically received by the network access server, in this case, an Aruba AOS 10 Gateway. The correct command to verify the receipt of a CoA message is related to the control path traffic because CoA is a control plane function.

Option B, packet-capture controlpath udp 3799, is the correct answer because it specifies capturing control plane traffic on UDP port 3799, which is the standard port for CoA messages.

Options A, C, and D are incorrect because:

Option A captures data plane traffic, not control plane traffic.

Option C's packet-capture interprocess udp 3799 does not refer to a standard command for capturing CoA messages.

Option D, tcpdump host-port 3799, does not specify the correct syntax for capturing traffic on Aruba devices.

Answer : D

Adding an additional IP subnet to the same VLAN means that devices configured with either subnet can communicate at Layer 2 without the need for routing. This is because they are on the same VLAN and thus in the same broadcast domain. However, to communicate between subnets, an L3 device or inter-VLAN routing would be required.
