Answer : D

L2 Bridging & Subnet Consistency (Correct Answer - D):

NSX L2 Bridging allows VLAN-backed workloads to communicate with overlay-backed workloads by extending Layer 2 segments between on-premises and cloud environments.

A fundamental requirement is that both locations use the same IP subnet to ensure seamless communication without additional routing.

Incorrect Options:

(A - Requires Geneve Encapsulation Over Public Internet):

L2 bridging is different from L3 VPN or Geneve overlay networks. Geneve is used for NSX overlay transport, but L2 bridging does not require Geneve over the internet.

(B - Only for Low-Latency Applications):

L2 bridging can introduce latency, but it is not restricted to low-latency applications. However, it should be used carefully in high-latency environments.

(C - Must Be in the Same Geographical Location):

While proximity reduces latency, it is not mandatory. Cross-region Layer 2 extensions can be implemented with VXLAN or NSX-T bridging, but performance considerations are crucial.

VMware NSX 4.x Reference:

NSX-T L2 Bridging Best Practices

NSX-T Multi-Cloud Design Guide

Answer : B

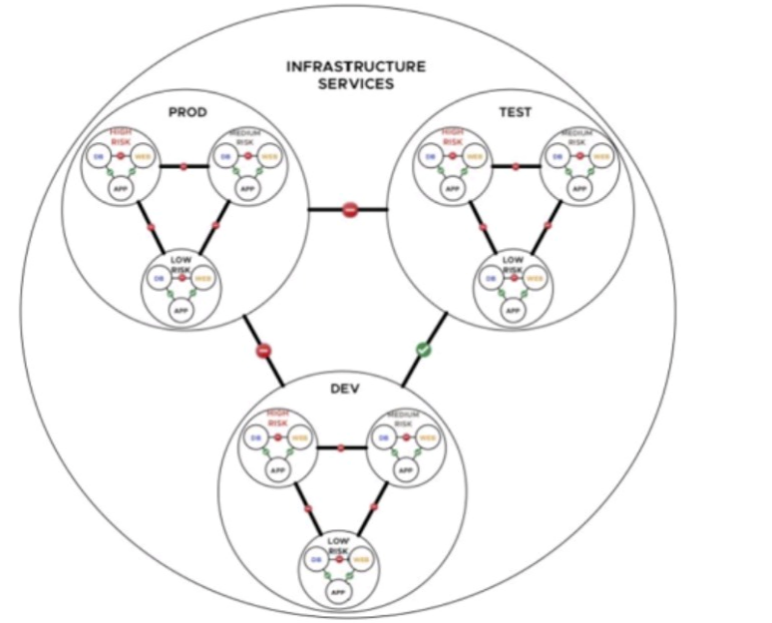

NSX Distributed Firewall for Zero Trust Security (Correct Answer - B):

NSX Distributed Firewall (DFW) provides micro-segmentation at the vNIC level to enforce Zero Trust policies.

Each application runs on its own NSX Overlay Network, preventing lateral movement of threats.

Application-specific segmentation ensures granular control and compliance with regulatory standards (PCI-DSS, GDPR).

Incorrect Options:

(A - Gateway Firewall on Overlay Networks):

The Gateway Firewall controls North-South traffic, but DFW is required for East-West security.

(C & D - VLAN-Backed Networks Instead of Overlays):

VLANs are limited in scalability compared to overlay networks, reducing segmentation flexibility.

VMware NSX 4.x Reference:

NSX-T Distributed Firewall and Micro-Segmentation Guide

Zero Trust Security Model Implementation in NSX

Answer : C

1. Understanding Constraints in NSX Design

A constraint is a limiting factor in a design that cannot be changed and must be worked around.

In this case, the organization's hosts are restricted to only two physical NICs, which can impact:

Overlay network design (Geneve traffic, TEPs allocation).

Traffic segmentation between management, storage, and data plane traffic.

High availability and redundancy configurations for NSX Edge and ESXi hosts.

2. Why 'Hosts can only be configured with two physical NICs' is the Correct Answer (C)

NIC limitations can impact NSX-T Transport Node Profiles, as best practices recommend at least 4 NICs (2 for management and vSAN, 2 for overlay transport).

With only two NICs, careful consideration must be given to:

Uplink Profile design (Active/Active vs. Active/Standby).

Physical redundancy using NIC teaming and VLAN segmentation.

Possible impact on performance if multiple types of traffic share the same NIC.

3. Why Other Options are Incorrect

(A - Dynamic Routing as a Constraint):

Dynamic routing (e.g., BGP, OSPF) is a design choice, not a hard constraint.

(B - CPU & Memory Availability in Management Cluster):

Having resources available is an enabler, not a constraint.

(D - IPv6 Applications):

IPv6 support is an NSX capability, not a constraint.

4. NSX Design Considerations for NIC-Constrained Hosts

Leverage VLAN-backed segments for underlay traffic.

Configure NIC teaming to optimize failover strategies.

Utilize Multi-TEP configurations to balance overlay traffic effectively.

Ensure NSX Edge nodes use DPDK-enabled NICs for high performance.

VMware NSX 4.x Reference:

NSX-T Transport Node Profile Design Guide

VMware Best Practices for NIC Teaming and Traffic Segmentation

NSX-T BGP and OSPF Routing Design Considerations

Answer : B

1. NSX Control Plane Responsibilities

The control plane is responsible for programming and distributing network configurations to the data plane.

It ensures that forwarding decisions are precomputed and pushed to transport nodes (ESXi/KVM hosts).

It does not forward traffic itself but instructs the data plane on how to do so.

2. Why 'Configures the Data Plane' is the Correct Answer (B)

NSX Control Plane manages configuration and route distribution.

Uses Central Control Plane (CCP) to compute forwarding decisions.

Uses Local Control Plane (LCP) to communicate with Transport Nodes.

3. Why Other Options are Incorrect

(A - Provides APIs):

NSX APIs belong to the management plane, not the control plane.

(C - Handles Access Control):

Security policies are enforced in the data plane, not the control plane.

(D - Forwards Traffic):

The data plane is responsible for forwarding packets, not the control plane.

4. NSX Control Plane Design Considerations

Ensure NSX Managers (which include the control plane) are deployed in a 3-node cluster for high availability.

BGP and OSPF routes should be dynamically distributed to transport nodes via the control plane.

Monitor NSX Manager performance to ensure routing convergence times are optimal.

VMware NSX 4.x Reference:

NSX-T Control Plane Architecture and Best Practices

NSX-T Routing and Forwarding Table Optimization

Answer : B

1. Why NSX Federation is the Best Choice (Correct Answer - B)

NSX Federation enables centralized management of multiple NSX deployments across different sites.

Distributed Firewall (DFW) ensures security segmentation per tenant, even across data centers.

Tier-0 Gateway provides global routing for multi-tenancy, ensuring efficient traffic flow between sites.

2. Why Other Options are Incorrect

(A - NSX Multi-Site Instead of Federation):

NSX Multi-Site only provides disaster recovery capabilities, not global policy enforcement.

(C - Gateway Firewall Instead of Distributed Firewall):

Gateway Firewalls secure North-South traffic but do not provide per-tenant segmentation at the workload level.

(D - Tier-1 Instead of Tier-0 for Multi-Tenancy):

Multi-tenancy is best implemented at the Tier-0 level to handle global routing efficiently.

3. NSX Federation Best Practices for Multi-Tenancy and DR

Deploy a Global Manager (GM) for centralized security policy enforcement.

Ensure Tier-0 Gateway is configured in Active-Active mode for scalability.

Use BGP for dynamic routing between data centers.

VMware NSX 4.x Reference:

NSX Federation Architecture and Multi-Tenancy Guide

Disaster Recovery and Multi-Site Network Extension in NSX-T
