Choose the correct answer.

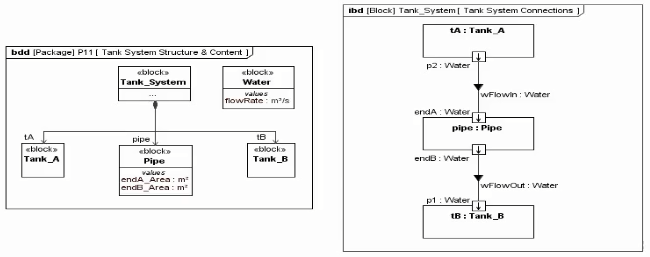

A system engineer has created the following model of a tank system composed of two tanks and a pipe connecting them:

The system engineer wants to mathematically relate the flow of water through the pipe using the following mass conservation equation: Tank_System wFlowin flowRate * Tank_System pipe endA_Area = Tank_System wFlowOut flowRate * Tank_System pipe endB_Area How would the system engineer model this in SysML?

ACreate a block to represent the mass conservation equation, use it in Tank_System. and relate its properties to the properties of wFlowin. wFlowOut. and pipe

BCreate a constraint block to represent the mass conservation equation, use it in Tank_System. and relate its parameters to the properties of wFiowin. wFlowOut. and pipe

CCreate a constraint block to represent each of wFlowin wFlowOut and the mass conservation equation; use these constraint blocks In Tank_System. and relate their parameters to the properties of pipe.

DCreate two flow properties for Tank_System (equivalent to wFlowin and wFlowOut); create a constraint block for the mass conservation equation and use it in Tank_System. and then relate the flow properties to the new constraint property.

EIt is not possible to model this because wFlowin and wFlowOut are item properties and not flow properties

Question 2

Choose the correct answer.

What is the relationship between objective functions and measures of effectiveness (MOEs)?

AAn objective function is usually a function of only one MOE.

BAn objective function is usually a function of several different MOEs

CAn MOE is usually composed of only one objective function.

DAn MOF is usually composed of several different objective functions

Question 3

Choose the correct answer.

Given a system for keeping birds away from airports One component, described by the following diagram directs audio signals at birds that approach a runway, its parts, as part properties, are typed by blocks.

A systems engineer has identified some blacks that type the pan properties, but as the design becomes more specific, the engineer discovers that these blocks exist in multiple variants.

What modeling choice does the engineer face at this point?

Awhether to model part properties as (a) a library, or (b) a logical hierarchy

Bwhether to model part properties as (a) a library or (b) a hierarchy of non-composite relationships

Cwhether to model variants of blocks that type part properties as (a) explicit subclasses of the blocks, or (b) part-specific types.

Dwhether to model variants of blocks that type part properties as (a) implicit subclasses of the blocks, or (b) part-specific types

Question 4

Choose the correct answer

How is a testCase used to validate a requirement?

AThe testCase model element can be used in SystvIL but it only applies to software

BValidation of a requirement can be indicated using a satisfiedBy relationship to a testCase

COnly the verdict model element (which can be a property of a testCase) can have a verifies relationship to a requirement.

DA requirement can have a vehfiedBy relationship to a testCase even if the test has not yet been conducted or even fully specified

EtestCase is part of the UML Testing Profile and cannot be used with SysML.

Question 5

Choose the correct answer.

Given the model composed of the following diagram:

The modeler has set all shown values us inputs and next intends to solve the mode that is, to calculate the outputs. Assume nothing relevant has been left out.

What is wrong with this model?

AThe modeler set a1 as an input value in case1.

BBlock A cannot be used by both easel and case2.

CBoth easel and case2 should not be underlined.

DThe slash (/) in property a1 of BlockA is an error that paramethes will assume to be a division sign.
