Answer : B

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

Layer 3 EVPN multi-homing with a centralized router uses an Ethernet Segment to associate multiple leaf routers with a common external L3 attachment. The centralized router is part of that attached segment from the forwarding perspective, and the connected leaf routers advertise third-party or customer prefixes into EVPN so that remote leaves can reach those prefixes through the multi-homed attachment. For L3 EVPN, learned customer prefixes are normally advertised using EVPN route type 5, which carries IP prefix reachability. In an all-active design, remote leaf routers may load balance traffic to the customer prefix through multiple attached leaf routers because the ES next-hop allows the remote PE to understand that the prefix is reachable through a multi-homed Ethernet Segment. The false statement is that every router participating in the Ethernet Segment must be configured with all-active mode. Multi-homing mode is a design and configuration property of the EVPN PEs participating in the ES, and designs may use single-active or all-active behavior depending on redundancy and forwarding requirements. Reference: L3 EVPN multi-homing, centralized router attachment, EVPN RT-5 prefix advertisement.

Answer : D

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

A route distinguisher is used in MP-BGP VPN and EVPN address families to make otherwise overlapping tenant routes unique in the BGP control plane. In EVPN, different tenants or EVPN instances may legitimately use the same MAC or IP values. The route distinguisher makes the NLRI globally unique by prepending a unique value to the tenant route. It is typically unique per PE and per EVI, and it is carried in EVPN route advertisements. However, the route distinguisher does not control route import, export, or service membership. That role belongs to the route target, which is a BGP extended community used by receiving PEs to decide which EVPN instance should import the route. Therefore, option D is not part of the correct description of a route distinguisher. Saying that the RD identifies the EVPN instance in the control plane confuses RD uniqueness with route-target membership. The RD makes routes unique; the route target associates those routes with the appropriate MAC-VRF or IP-VRF import policy. Reference: EVPN route distinguisher, overlapping tenant addresses, route target separation.

Answer : B

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

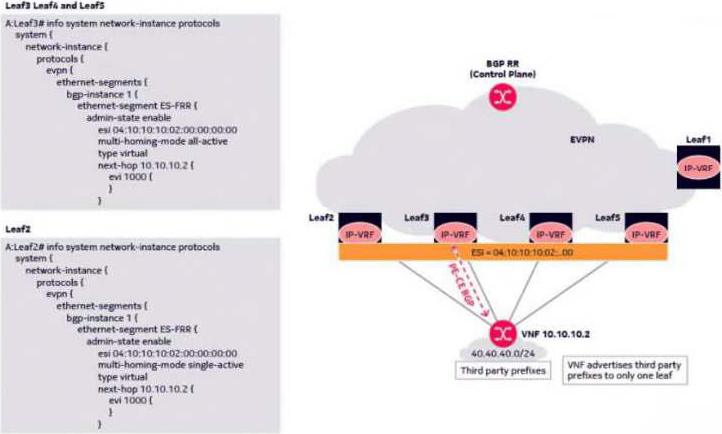

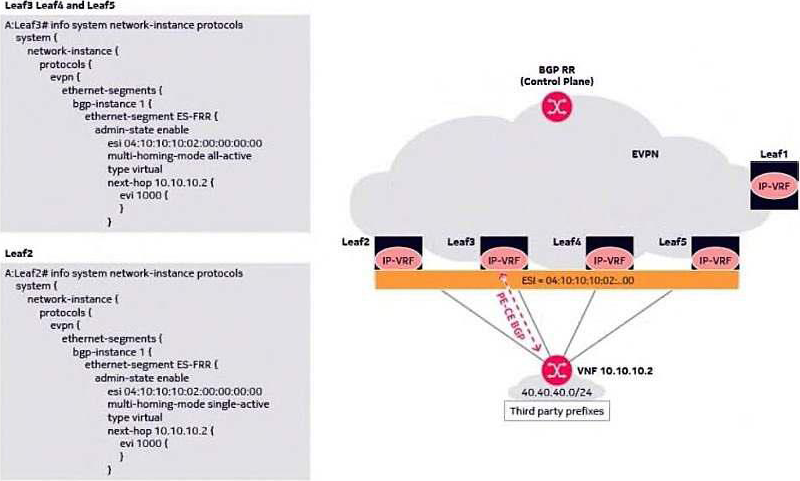

The scenario describes Layer 3 EVPN multi-homing with an IP-VRF service and an external CE VNF advertising the 40.40.40.0/24 prefix through BGP. A DF election can occur among the leaf routers participating in the Ethernet Segment, and the active/primary forwarding node is used for the relevant service behavior. The AD per EVI route can participate in identifying service-level reachability for the Ethernet Segment, and the prefix traffic follows the valid advertised path toward the CE VNF. Because Leaf3 has the BGP connection to the CE VNF, traffic for 40.40.40.0/24 is forwarded through Leaf3. Option B is false because it incorrectly states that all connected leaf routers will use single-active redundancy. The exhibit and answer context indicate a more specific forwarding/primary selection for the service, not a blanket statement that every connected leaf operates using single-active redundancy. In L3 multi-homing, redundancy behavior depends on the ES mode, prefix advertisement, next-hop association, and CE connectivity. The forwarding decision for the customer prefix is tied to the active/valid route advertisement, not to every leaf uniformly acting as single-active. Reference: L3 EVPN multi-homing, DF election, AD per EVI role, PE-CE BGP prefix forwarding.

Answer : B

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In a single-active EVPN multi-homing design, the connected PE routers perform Designated Forwarder election to determine which PE is active for the relevant service or Ethernet Segment. The DF is responsible for forwarding toward the attached segment and, in a Layer 3 multi-homing case, only the active/DF PE advertises the customer IP prefix route toward the EVPN control plane. Single-active redundancy is communicated using Ethernet Segment-related EVPN procedures, including Ethernet A-D information, so remote PEs can identify the redundancy behavior and avoid forwarding traffic to an inactive attachment. The false statement is that the elected DF uses an AD per EVI update to identify itself as primary. AD per EVI is primarily used to advertise per-service Ethernet Segment reachability and support aliasing/load-balancing behavior in multi-homed services. DF election itself is driven by Ethernet Segment route procedures, not by the DF declaring itself primary through AD per EVI. Therefore, option B misstates the role of AD per EVI in the single-active L3 multi-homing control plane. Reference: EVPN DF election, single-active multi-homing, Ethernet A-D routes.

Answer : A

Comprehensive and Detailed 150 to 250 words of Explanation From [SR Linux EVPN and Data Center Interconnect/Course Guide/topics]:

In SR Linux BGP configuration, parameters defined at a more specific hierarchy level can override broader protocol-level settings. Therefore, if a `local-as` value is configured within the BGP group used for EVPN MP-BGP route-reflector sessions, that value overrides the AS number configured directly under the BGP protocol for that group's sessions. Option A is correct. Option B is false because the cluster ID is configured on the route reflector, not on every participating client. The cluster ID identifies the RR cluster and helps prevent route-reflection loops. Option C is false because redundant route reflectors normally operate in parallel rather than as strict primary/backup devices; clients can peer with both for resilience. Option D is misleading because EVPN route reflectors are used to avoid a full mesh of overlay MP-BGP EVPN sessions between leaves, not to replace ordinary underlay eBGP leaf-spine routing sessions. In a clean fabric design, the underlay provides IP reachability, while the EVPN overlay uses MP-BGP sessions, often via route reflectors, to distribute tenant reachability. Reference: SR Linux BGP hierarchy, EVPN route reflector sessions, local-AS override, cluster ID behavior.
