An IS-IS TE enabled router has an interface on a 500Mbps link and it is configured with a 25% subscription. If this interface is not used by any LSPs. what value will be shown in the Reservable Bandwidth sub-TLV?
Which of the following regarding the location of an MPLS label is FALSE?
Click on the exhibit.

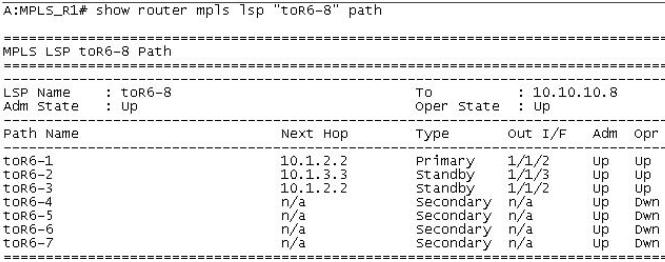

The partial command output from an Alcatel-Lucent 7750 SR is shown. Which of the following about this LSP path is TRUE?

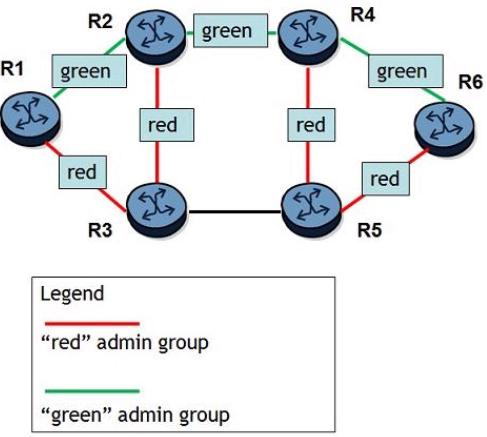

If an LSP needs to use an admin group, which of the following configurations is NOT required on the Alcatel-Lucent 7750 SR?
Click on the exhibit.
An LSP traverses R1-R2-R4-R6 and one-to-one fast reroute with link protection is enabled. All links have the same cost. Which of the following about DMP and MP is TRUE?
