Answer : D

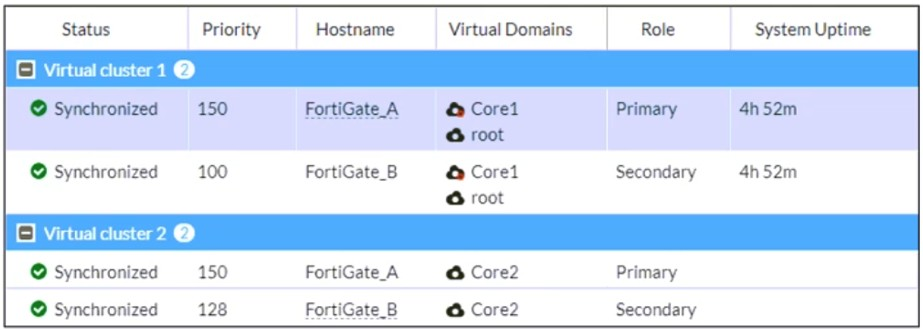

The exhibit shows an active-passive HA (high availability) cluster with two virtual clusters, where FortiGate_A is the primary device for both Core1 and Core2. If the goal is to have FortiGate_B take over Core2 traffic, its priority must be higher than FortiGate_A for Virtual Cluster 2.

Currently, FortiGate_A has a priority of 150 for Core2, while FortiGate_B has 128. Increasing FortiGate_B's priority to 200 ensures it becomes the primary for Virtual Cluster 2, taking over the Core2 VDOM traffic while keeping Core1 traffic on FortiGate_A.

Disabling override would prevent forced failovers but wouldn't change the role distribution. Adjusting the load-balancing method is irrelevant in an active-passive setup, as it only applies to active-active configurations.

Answer : C

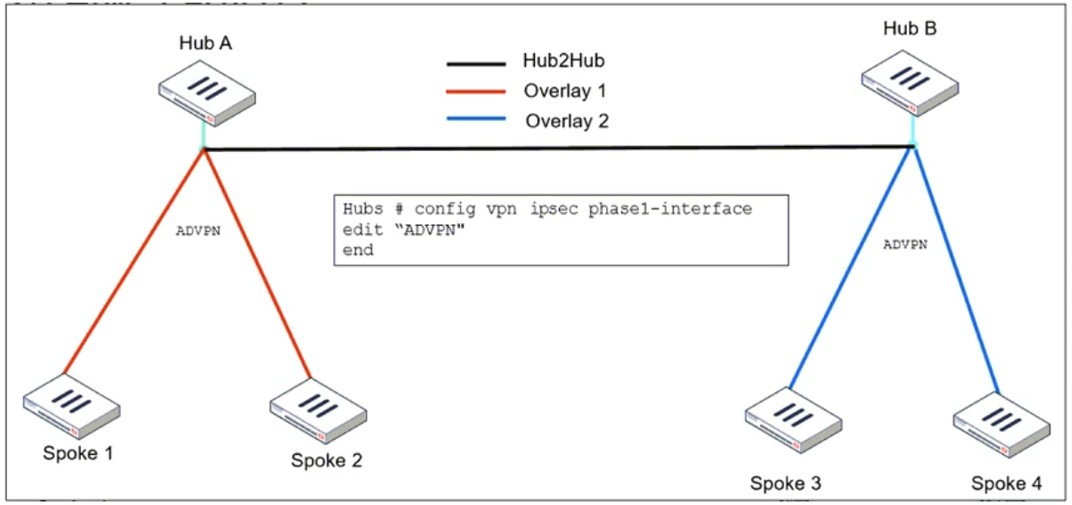

When configuring ADVPN (Auto-Discovery VPN) to connect overlay networks across different hubs using IBGP and EBGP, special configurations are required to allow spokes from different overlay networks to dynamically establish tunnels.

set auto-discovery-crossover enable

This allows cross-hub tunnel discovery in an ADVPN deployment where multiple hubs are used.

Since Hub A and Hub B belong to different overlays, enabling crossover discovery ensures that spokes from one overlay can dynamically create direct tunnels to spokes in the other overlay when needed.

set enforce-multihop enable

This setting ensures that BGP peers using loopback interfaces can establish connectivity even if they are not directly connected.

Multihop BGP sessions are required when using loopback addresses as BGP peer sources because the connection might need to traverse multiple routers before reaching the BGP neighbor.

This is especially useful in ADVPN deployments with multiple hubs, where routes might need to cross from one hub to another.

Answer : A, C

The MAC address e0:23:ff:fc:00:86 follows the format used in FortiGate High Availability (HA) clusters. When FortiGate devices are in an HA configuration, they use virtual MAC addresses for failover and redundancy purposes.

The suspicious packet is related to a cluster that has VDOMs enabled: FortiGate devices with Virtual Domains (VDOMs) enabled use specific MAC address ranges to differentiate HA-related traffic. This MAC address is likely part of that mechanism.

The suspicious packet is related to a cluster with a group-id value lower than 255: FortiGate HA clusters assign virtual MAC addresses based on the group ID. The last octet (00:86) corresponds to a group ID that is below 255, confirming this option.

Answer : A, B

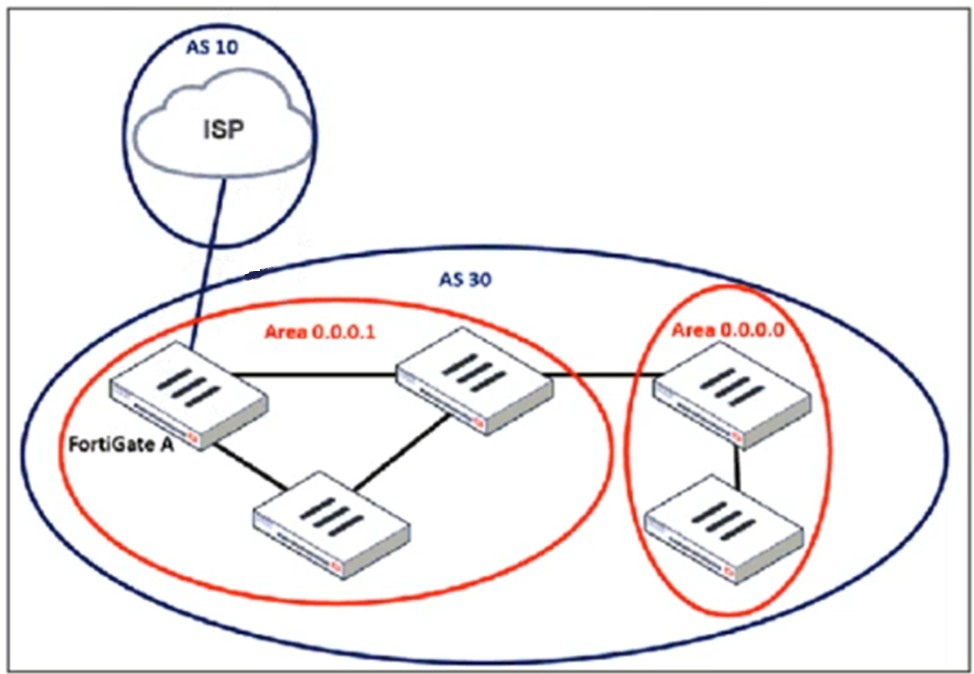

When configuring a loopback interface as the BGP source for connecting to an ISP, two important settings must be applied:

1. Enable EBGP Multihop (ebgp-enforce-multihop)

2. Set the Update Source (update-source)

Answer : D

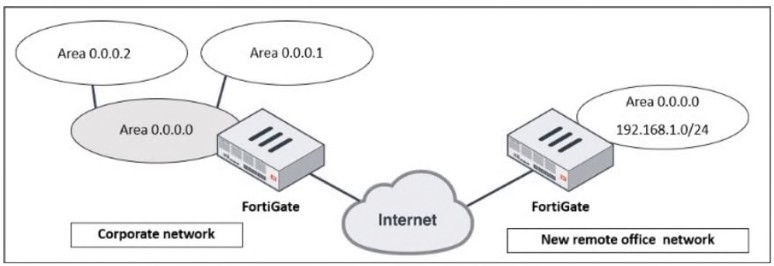

In this scenario, the corporate network and the new remote office network need to communicate over the Internet, which requires a secure and dynamic routing method. Since both networks are using OSPF (Open Shortest Path First) as the routing protocol, the best approach is to establish an OSPF over IPsec VPN to ensure secure and dynamic route propagation.

OSPF is already running on the corporate network, and extending it over an IPsec tunnel allows dynamic route exchange between the corporate FortiGate and the remote office FortiGate. IPsec provides encryption for traffic over the Internet, ensuring secure communication. OSPF over IPsec eliminates the need for manual static routes, allowing automatic route updates if networks change.

The new remote office's 192.168.1.0/24 subnet will be advertised dynamically to the corporate network without additional configuration.
