Answer : A, B, E

Verify Switch Port Status:

Step: Check the status of the FC ports on the Brocade switch.

Reason: The ports need to be enabled for communication.

Check Cable Connections:

Step: Ensure that the FC cables are properly connected to the switch.

Reason: Loose or disconnected cables can cause the ports to appear down.

Verify Switch Zoning:

Step: Confirm that the WWPNs for the EF280 and server HBAs are correctly zoned in the Brocade switch.

Reason: Incorrect zoning can prevent the devices from communicating, causing the ports to appear down.

NetApp SANtricity System Manager documentation

Brocade switch configuration and zoning guides

NetApp hardware installation and best practices guides

Answer : B

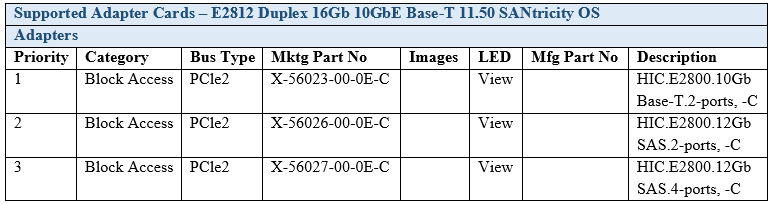

The exhibit shows the supported adapter cards for the E2812 system with specific marketing part numbers.

The E2812 system ordered is a Duplex 16Gb 10GbE Base-T system with the adapter card part number X-56023-00-0E-C, which is described as 'HIC.E2800.10Gb Base-T.2-ports, -C'.

Each card provides 2 ports.

Given that the system is duplex, it means it has two controllers, each capable of supporting one card.

Therefore, each controller can have one 10GbE Base-T card with 2 ports, resulting in a maximum of 4 ports available in total for the system.

NetApp E-Series SANtricity System Manager and E2800 Series Hardware Installation Guide.

Answer : A, B

Check Drive Capacity:

Step: Ensure that the new drives are of the same capacity or larger than the existing drives in the DDP.

Reason: Consistent drive capacity ensures optimal performance and utilization.

Verify Security Type:

Step: Confirm that the new drives have a compatible security type (e.g., FDE, FIPS) with the existing drives.

Reason: Incompatible security types can lead to configuration issues or reduced security.

NetApp E-Series Hardware and Software Compatibility Guide

NetApp SANtricity System Manager User Guide

Answer : C

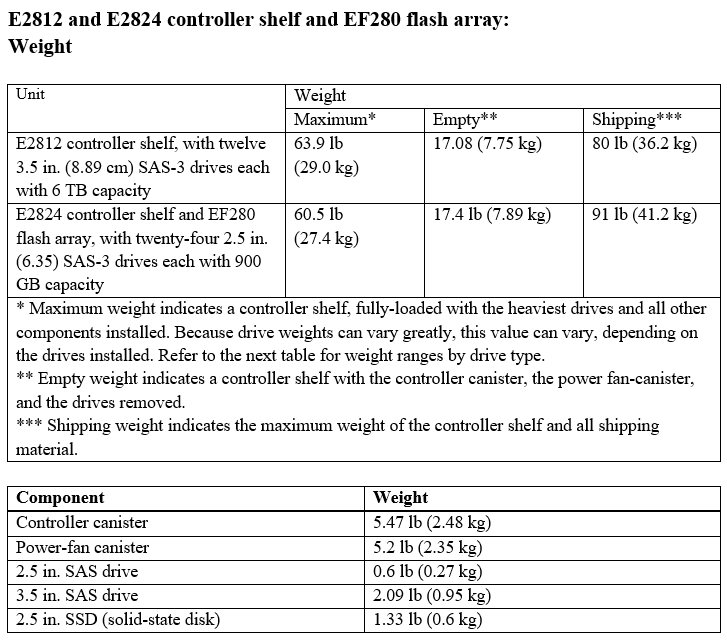

Total weight capacity per tile: 700 lb.

Data cabinet weight: 90 lb.

Available weight for shelves: 700 lb. - 90 lb. = 610 lb.

Weight of an E2824 shelf (maximum): 60.5 lb.

Number of shelves: 610 lb. / 60.5 lb. 10 shelves

However, considering the safety margin and not exceeding the weight limit, we take 6 shelves as a practical maximum.

Answer : A, C, E

Secure Connection Requirement: To manage the E-Series system over a secure connection, certain steps need to be taken to ensure encrypted communications.

Disabling Legacy Management Interface: This step ensures that only secure management interfaces are used, preventing the use of less secure legacy protocols.

Certificate Signing Request (CSR): Completing the CSR on the system is necessary to generate a public/private key pair. This CSR can then be submitted to a certificate authority (CA) to obtain a signed certificate.

Importing CA Signed Certificates: Once the CA has signed the certificate, it must be imported into the E-Series system. This signed certificate ensures that the communication between the server and the system is encrypted and trusted.

NetApp E-Series SANtricity System Manager documentation on secure management

NetApp Implementation Engineer - SAN Specialist - E-Series manuals
