Answer : A, B

Local preference is a BGP attribute that dictates which path is preferred when multiple paths to the same destination are available. A higher local preference is preferred over a lower one. Since ISP A (AS 65501) is advertising a local preference of 100 and ISP B (AS 65502) is advertising a local preference of 200 to AS 65512, traffic from devices in AS 65512 will prefer the path via ISP B for all networks that ISP B advertises. However, since ISP A advertises the 172.20.21.0/24 network and ISP B does not, traffic for 172.20.21.0/24 will go through ISP A. For the 172.20.0.0/24 network, which both ISPs advertise, devices in AS 65512 will prefer the path via ISP B due to the higher local preference.

Juniper Networks documentation on BGP attributes: BGP Attributes and Policy

Answer : C, D

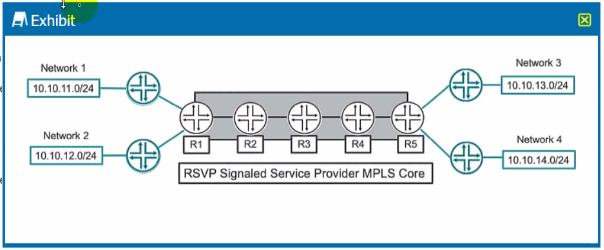

In MPLS, multiple paths can be merged if they share the same egress router. In the given scenario, traffic from Network 1 to Network 3 and Network 4 can be engineered to follow the same label-switched path (LSP) within the MPLS network until they reach the last common point before diverging to their respective destinations.

As for R3 performing label operations, in a typical MPLS network, intermediate routers (like R3) perform label swapping. They replace the incoming label with a new label before forwarding the packet along the LSP. A label pop operation is typically performed by the egress router in the case of an ultimate hop pop (UHP), where it removes the MPLS label before delivering the packet to the final destination outside the MPLS domain.

Juniper Networks Technical Documentation on MPLS

Understanding MPLS Label Operations (Swap, Push, and Pop) - Juniper Networks

Answer : C, D

The community attribute in BGP is an optional transitive attribute. It is not mandatory for BGP operations, but when it is present, it should be passed unchanged to other BGP peers unless explicitly modified by a routing policy. The community attribute is used to group destinations in a certain way, often to apply routing policies to those destinations collectively.

Juniper Networks documentation on BGP communities: BGP Communities Overview

Answer : A

An Integrated Routing and Bridging (IRB) interface is used to provide Layer 3 routing services to hosts within a bridge domain. The IRB acts as a default gateway for hosts in that domain, enabling communication with other networks.

Juniper Networks Technical Documentation on IRB Interfaces

Answer : C

IS-IS is a link-state routing protocol that uses a Shortest Path First (SPF) algorithm to create a topology map of the network. It floods link-state advertisements (LSAs) to all nodes within the network area to ensure each node has a consistent view of the network topology.

Juniper Networks Technical Documentation on IS-IS

Understanding IS-IS - Juniper Networks
