Get Fortinet NSE7_SSE_AD-25 Exam Practice Questions - Real and Updated

Answer : B, D

According to the NSE7 SASE Enterprise Guide (Pages 46 & 61), deploying Secure Private Access (SPA) with SD-WAN provides advanced security and networking capabilities by routing traffic through global Points of Presence (PoPs).

Inline Security Inspection (D): A major advantage of this approach is that traffic is routed through FortiSASE PoPs before it reaches private applications. This enables inline security inspection, providing robust protection against threats by applying the full SASE security stack---including antivirus, intrusion prevention, and deep packet inspection---to private access traffic.

Support for TCP and UDP (B): Organizations with existing FortiGate SD-WAN deployments benefit from broader and seamless access to privately hosted applications. The SD-WAN SPA use case explicitly supports both TCP- and UDP-based applications, ensuring that legacy or specialized services that rely on UDP function correctly over the secure tunnel.

SD-WAN Optimization: This method leverages the benefits of SD-WAN to optimize traffic flow between the SASE PoP and the corporate SD-WAN hub or data center FortiGate. It is particularly useful for mission-critical applications that require an extra layer of security combined with path optimization.

Architecture: In this configuration, the FortiSASE Security PoPs act as spokes in the organization's SD-WAN network, relying on IPsec VPN overlays and BGP for secure dynamic routing.

While ZTNA posture checks are a feature of the broader ecosystem, the NSE7 Guide specifically highlights inline inspection and application support (TCP/UDP) as primary advantages of the SD-WAN integrated SPA approach.

Answer : C

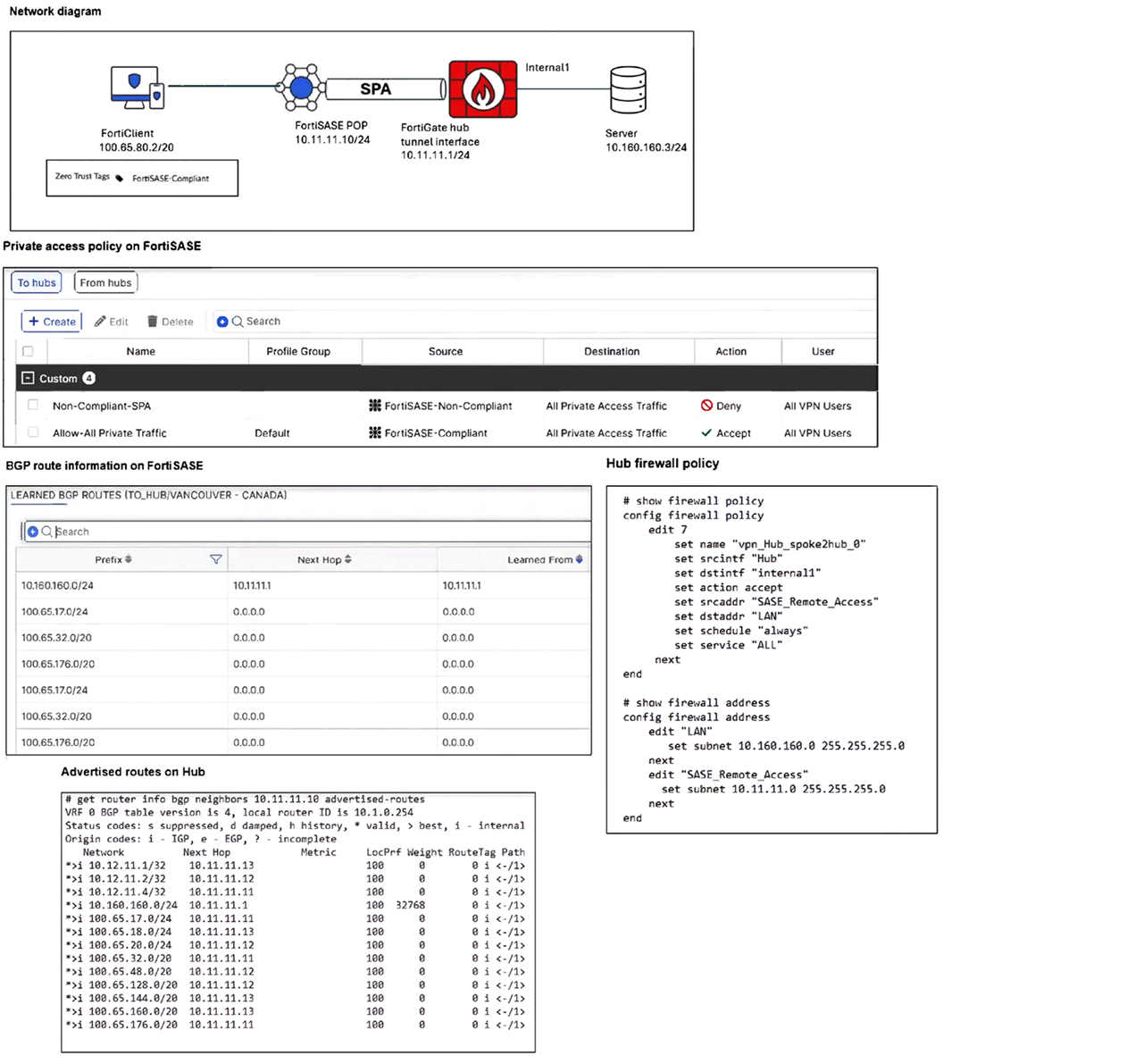

Based on the detailed analysis of the provided exhibits (image_65feb6.jpg), the connectivity failure is caused by a mismatch in the Hub firewall policy configuration.

Endpoint Analysis: The Network Diagram shows the FortiClient endpoint has an IP address of 100.65.80.2/20 and currently carries the FortiSASE-Compliant ZTNA tag.

FortiSASE Policy Validation: The Private access policy on FortiSASE shows an 'Accept' rule for traffic originating from 'FortiSASE-Compliant' sources destined for 'All Private Access Traffic'. This confirms the traffic is successfully leaving the FortiSASE PoP.

Routing Validation: The Learned BGP Routes on FortiSASE table shows the prefix 10.160.160.0/24 (the Server subnet) is correctly received via Next Hop 10.11.11.1. Routing is correctly established.

Hub Firewall Policy Error: Examining the Hub firewall policy (edit 7), the srcaddr is set to 'SASE_Remote_Access'. Looking at the address object definition for 'SASE_Remote_Access,' it is configured with the subnet 10.11.11.0 255.255.255.0.

The Conflict: The FortiClient's actual IP address (100.65.80.2) does not fall within the 10.11.11.0/24 range defined in the policy's source address. On a FortiGate hub, for traffic to be permitted through the tunnel to the internal server, the firewall policy must include the specific subnet assigned to the remote clients, not just the tunnel interface subnet. Because the FortiClient address range is missing from the hub's policy, the traffic is dropped at the hub.

Answer : B

Comprehensive and Detailed Explanation From FortiSASE 24.x/25.x, FortiOS 7.4, FortiAuthenticator 6.5, FortiClient 7.0 and later Exact Extract study guide:

In FortiSASE environments, Single Sign-On (SSO) is prioritized as the primary enterprise authentication mechanism. According to the FortiSASE Configuration Guide and Security Operations documentation, when you configure SAML SSO (Single Sign-On), it serves as a global authentication setting that overrides any previously configured local or remote (RADIUS/LDAP) user authentication methods for the secure web gateway (SWG) and VPN tunnels.

The architectural logic is designed to ensure a seamless 'Zero Trust' identity provider (IdP) experience. Once SSO is enabled and configured (typically using Azure AD, Okta, or FortiAuthenticator as the IdP), FortiSASE redirects authentication requests to the defined IdP. This effectively supersedes manual local user databases or legacy RADIUS configurations to maintain a single source of truth for identity management. While MFA is often a component of the authentication process, it is a secondary factor, whereas SSO is the foundational method that dictates the authentication flow and overrides prior settings.

Answer : C

In a FortiSASE environment, the ability of a remote user to establish a VPN tunnel is governed not only by their credentials and firewall policies but also by geographic access controls.

Geofencing Mechanism: FortiSASE includes a Geofencing feature (found under Configuration > Restrictions or Configuration > Geofencing in newer versions) that allows administrators to restrict or allow access to SASE services based on the geographic location of the endpoint's public IP address.

Connection Failure vs. SSO Success: The scenario describes a situation where users can successfully authenticate via SSO to reach third-party SaaS apps like Office 365 (O365) or Salesforce (SFDC) but cannot connect to the SASE VPN. This occurs because the SSO authentication is handled directly by the Identity Provider (IdP) (e.g., Microsoft Entra ID), which may not have the same geographic restrictions. However, when the FortiClient attempts to establish the tunnel to the FortiSASE Point of Presence (PoP), the SASE gateway checks the Geofencing list. If the country the user is visiting is on the Deny list (or not on the Allow list), the connection is dropped at the 'local-in' policy level on the SASE backend, preventing the tunnel from forming.

Verification and Resolution: To resolve this, the administrator must verify the Geofencing settings and ensure that the countries where the traveling users are located are permitted to connect. If the feature is enabled with a 'Deny' list, the specific country must be removed from that list; if it uses an 'Allow' list, the country must be added.

Analysis of Other Options:

Option A: Firewall policies govern traffic after the tunnel is established; they cannot resolve a failure to connect the tunnel itself.

Option B: Restarting the device is a general troubleshooting step but will not bypass a server-side geographic block.

Option D: While keeping clients updated is a best practice, the issue described (specific to overseas travel while other functions work) points to a configuration restriction rather than a software bug.

Answer : C

The Digital Experience Monitor (DEM) feature in FortiSASE is a specialized monitoring tool integrated into the SASE cloud to ensure optimal application performance and user satisfaction.2

Purpose and Visibility: DEM is designed to provide end-to-end network visibility by monitoring the health and performance of the connections between the global FortiSASE security Points of Presence (PoPs) and specific SaaS applications (such as Microsoft 365, WebEx, or Dropbox).

Performance Metrics: It identifies and helps troubleshoot issues related to latency, jitter, and packet loss. By leveraging vantage points within the SASE infrastructure, administrators can determine if a performance bottleneck resides within the local network, the SASE backbone, or the SaaS provider's environment.

Integration: This feature is often powered by FortiMonitor, allowing for synthetic transaction monitoring (STM) to simulate user interactions and proactively spot performance issues before they impact the hybrid workforce.

Operational Efficiency: By providing comprehensive insights across users and PoPs, DEM reduces the time required to resolve 'slowness' complaints, which are common in remote work scenarios.

Comparison of Other Features:

Option A: While FortiSASE monitors PoP health, DEM's primary value is the end-to-end path to the application.

Option B: Compliance checks are a function of Endpoint Profiles and ZTNA tagging rules, not the monitoring dashboard.

Option D: Vulnerability management is handled by the Vulnerability Scan feature within the managed FortiClient settings.
