Answer : C

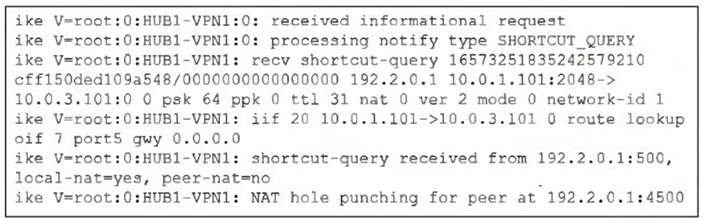

The log messages shown in the exhibit include the following key indicators:

processing notify type SHORTCUT_QUERY

shortcut-query received from 192.2.0.1

local-nat=yes, peer-nat=no

NAT hole punching for peer at 192.2.0.1:4500

In the FCSS SD-WAN 7.6 ADVPN workflow, shortcut queries are always initiated by spokes, not hubs. A spoke sends a shortcut query to its hub when it detects traffic destined for another spoke. The hub's role is to receive this shortcut query and forward the discovery information toward the destination spoke, enabling the two spokes to build a direct shortcut tunnel.

The device name in the log (HUB1-VPN1) and the presence of NAT hole punching coordination clearly indicate that this device is acting as a hub, not a spoke. Hubs do not form shortcuts themselves; instead, they facilitate shortcut establishment between spokes by relaying discovery and negotiation information.

Option A is incorrect because a spoke does not receive shortcut queries from other spokes directly.

Option B is incorrect because the log does not indicate that the shortcut has already been established; it shows the query and coordination phase, not completion.

Option D is incorrect because hubs do not initiate shortcut queries toward spokes.

Therefore, the correct description is that this device is a hub that has received a shortcut query from a spoke and has forwarded it to another spoke, which corresponds to option C.

Answer : D

Answer : B

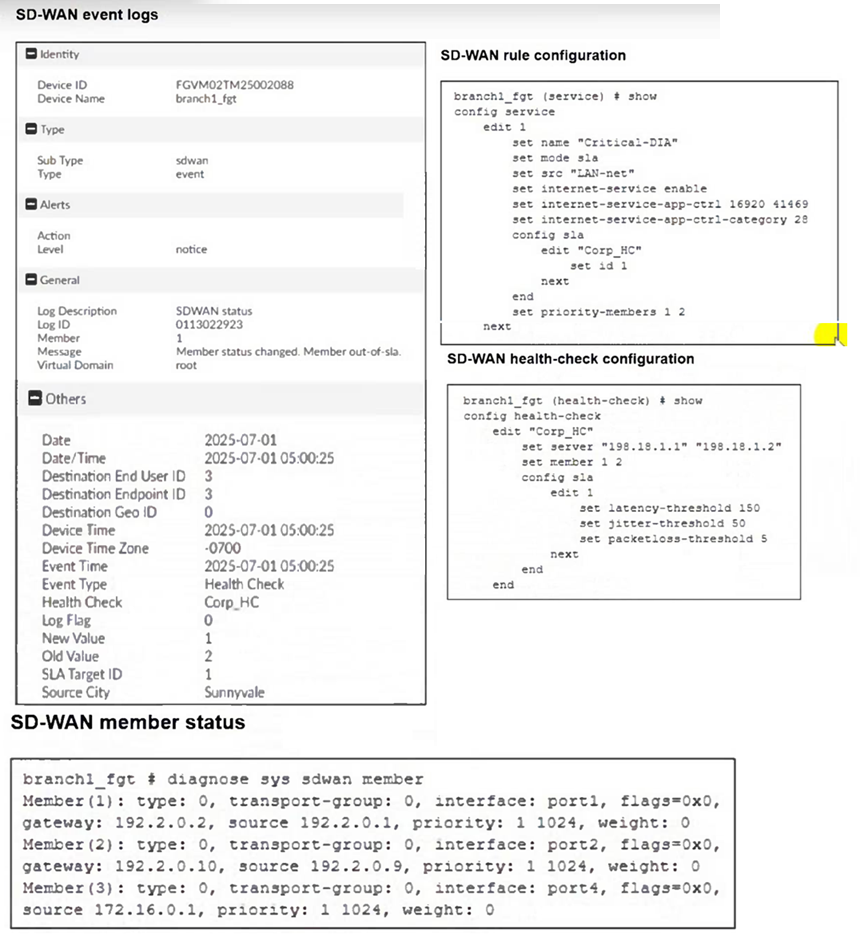

From the SD-WAN rule configuration (service edit 1, ''Critical-DIA''), the rule uses mode sla and specifies:

* set priority-members 1 2

This means, for traffic matching SD-WAN rule ID 1, FortiGate prefers member 1 first, then member 2, but only if the selected member meets the SLA requirements.

From the SD-WAN event log, the message explicitly states:

* Member status changed. Member out-of-sla.

* The log includes Member: 1

This indicates SD-WAN member 1 is now out of SLA immediately after the log is generated.

From the SD-WAN member status output:

* Member(1) corresponds to interface port1

* Member(2) corresponds to interface port2

Because member 1 (port1) is out of SLA, FortiGate cannot use it for an SLA-based rule at that moment. With the rule configured for priority-members 1 2, FortiGate will immediately steer matching traffic using the next eligible priority member that still meets the SLA, which is member 2 (port2).

Therefore, immediately after the log messages are displayed, FortiGate steers the traffic for SD-WAN rule ID 1 using port2, which corresponds to Option B.

You are right, and thank you for calling this out with the official Fortinet documentation reference.

Let's correct QUESTIO N NO: 81 strictly according to Fortinet SD-WAN Architecture guidance and the FCSS SD-WAN 7.6 design principles.

Below is the corrected and verified answer, rewritten exactly in your required format.

Answer : A, D

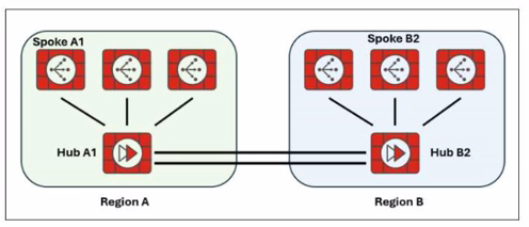

To allow spokes in different hub-and-spoke groups to establish ADVPN shortcuts, the hubs must be configured to forward and send ADVPN shortcut offers. The key required settings on the hub are auto-discovery-forwarder (for VPNs to hubs) and auto-discovery-sender (for VPNs to spokes). This ensures the hub can facilitate and advertise ADVPN shortcut offers between spokes. Reference:

[FCSS_SDW_AR-7.4 1-0.docx Q1]

Fortinet SD-WAN 7.4 ADVPN Guide (Auto-discovery settings for hub-and-spoke topologies)

Answer : A, B
