Answer : C

Understanding Dell PowerEdge Server Out-of-Band Management

Server Management and Configuration Tools (14%)

Define in-band and OOB management and at-the-box-management

What is Out-of-Band (OOB) Management?

Out-of-band management refers to the ability to manage and monitor a server independently of the operating system or primary network interfaces. Dell PowerEdge servers utilize the Integrated Dell Remote Access Controller (iDRAC) for OOB management.

Characteristics of Out-of-Band Management:

Independent Operation:

OOB management operates independently of the server's operating system. It remains functional even if the server is powered off (as long as it is connected to a power source) or the operating system is unresponsive.

Dedicated Network Connection:

OOB management uses a network connection separate from the data network. This is typically achieved via a dedicated management port on the server, ensuring that management traffic does not interfere with data traffic.

Option C reflects this characteristic accurately.

No Need for Operating System Agents:

OOB management does not require any software agents running on the operating system. Management tasks are performed directly through the iDRAC hardware.

Option D is incorrect because OOB management does not require an OS-level agent.

Remote Management Capabilities:

Allows administrators to perform tasks such as monitoring hardware status, configuring settings, updating firmware, and even powering the server on or off remotely.

Explanation of Options:

Option A: Cannot manage a powered off device

Incorrect: OOB management allows for the management of powered-off devices as long as the iDRAC is receiving power.

Option B: Gives firmware update access to all users

Incorrect: Access to firmware updates and other critical functions is controlled via user permissions within iDRAC. Not all users have equal access.

Option C: Network connection separate from data source

Correct: OOB management uses a dedicated network interface, separate from the server's primary data network interfaces.

Option D: Requires an operating system level agent

Incorrect: OOB management is independent of the operating system and does not require any OS-level agents.

Dell Operate Reference:

Server Management and Configuration Tools (14%)

Define in-band and OOB management and at-the-box-management: Understanding the differences between in-band (requiring OS-level interaction) and out-of-band management is crucial for effective server administration.

Conclusion:

Dell PowerEdge server out-of-band management is characterized by the use of a network connection separate from the data source, allowing for independent and remote management of the server hardware without relying on the operating system.

Answer : A

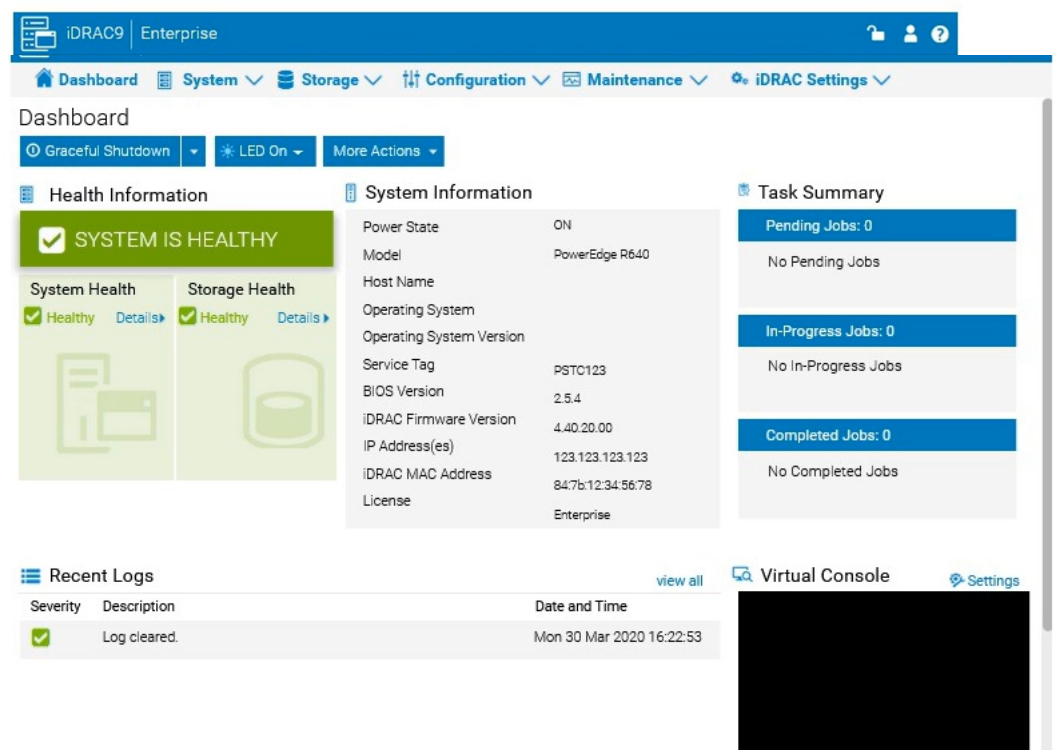

To configure an iDRAC shared management port with LOM2 and set up a failover network using LOM3 in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Access iDRAC Network Settings:

In the iDRAC interface, navigate to the iDRAC Settings tab in the top menu bar.

Select Network from the dropdown options to access network configuration settings.

Configure the Shared Management Port:

In the Network settings, locate the section for Network Interface or LAN Interface Configuration.

Change the NIC Selection to Shared. This will enable the use of a LAN on Motherboard (LOM) port for iDRAC management.

Select LOM2 for the Shared Management Port:

Once you've selected Shared, additional options should appear for selecting the specific port.

Choose LOM2 as the Shared Management Port. This configures iDRAC to use LOM2 for its primary network connection.

Enable Failover and Select LOM3:

Look for the Failover settings within the same Network Interface configuration.

Enable Failover and select LOM3 as the failover network port. This configuration allows iDRAC to switch to LOM3 automatically if there is an issue with the connection on LOM2.

Save and Apply Settings:

Once you have configured the shared management port and failover settings, click Apply or Save to confirm the configuration.

The iDRAC interface may briefly refresh, and you should receive a confirmation that the settings have been applied successfully.

Verify Configuration:

After the settings are saved, you can verify that LOM2 is listed as the shared management port and that LOM3 is set as the failover port under Network settings.

By following these steps in the simulator, you should be able to configure iDRAC to use LOM2 for the shared management port and set up a failover network with LOM3. Make sure to save your changes to apply the configuration.

Answer : A

To change the Power Supply Unit (PSU) configuration to a 2+0 setup with PSU2 as the primary in the iDRAC interface, follow these steps:

Step-by-Step Guide:

Navigate to Power Management Settings:

In the iDRAC interface, go to the Configuration tab at the top.

Select Power Management from the dropdown options.

Locate the Power Configuration Section:

Within the Power Management settings, look for a section labeled Power Configuration or Power Supply Configuration.

Select the Redundancy Policy:

Change the Redundancy Policy to 2+0. In this configuration, there will be no redundancy, and both power supplies will be active but configured as independent power sources without failover.

Set PSU2 as the Primary PSU:

Locate the option to designate the Primary PSU. Select PSU2 as the primary power source.

This setting ensures that PSU2 will handle the primary power load under normal conditions.

Apply and Save Changes:

Once you have made these changes, click Apply or Save to confirm the new configuration.

The interface may prompt for confirmation, after which the settings will be saved, and PSU2 will become the primary power supply under a 2+0 configuration.

Verify Configuration:

Review the updated settings to confirm that PSU2 is now set as primary and that the redundancy policy is 2+0, meaning only PSU2 is actively providing power without a secondary backup.

By following these steps in the iDRAC simulator, you will set up PSU2 as the primary power source with no redundancy, ensuring a 2+0 configuration. This setup will leverage PSU2 exclusively without automatic failover to another power supply.

Answer : B

Selecting a Management Application for Holistic Management of Dell PowerEdge Servers and MX7000 Chassis

Server Management and Configuration Tools (14%)

Explain the management interface options - LCC, racadm, OMSA, iSM, OME

System Administration (18%)

Configure BIOS, Storage, virtual media, networking, user access, lockdown mode, and group management

Understanding Customer Requirements

Environment:

Ten Dell PowerEdge R660 servers (rack servers).

Two MX7000 chassis (modular servers).

Requirement:

A management application that can holistically manage and monitor storage, servers, and network environment.

Evaluation of Options

Option A: iSM (Integrated Dell Remote Access Controller Service Module)

iSM is a software module that enhances iDRAC functionality by providing OS-level monitoring and management.

It is installed on individual servers to facilitate communication between the OS and iDRAC.

Limitation:

Not a centralized management application.

Does not provide holistic management across multiple servers and chassis.

Conclusion: Not suitable.

Option B: OME (OpenManage Enterprise)

Dell OpenManage Enterprise is a web-based, one-to-many systems management application.

Features:

Provides comprehensive management of Dell EMC servers, storage, and networking devices.

Supports both rack servers (R660) and modular chassis (MX7000).

Offers monitoring, configuration, deployment, and update capabilities.

User-friendly dashboard for holistic infrastructure management.

Conclusion: Correct Answer.

Option C: Group Manager

Group Manager is an iDRAC feature that allows basic grouping of servers for simplified management.

Limitations:

Limited to servers of the same generation and similar configurations.

Does not support the full range of management functions required.

Not suitable for managing storage and network environments.

Conclusion: Not sufficient.

Option D: OMSA (OpenManage Server Administrator)

OMSA is a software agent that provides a comprehensive, one-to-one systems management solution.

Installed on individual servers to manage and monitor hardware components.

Limitations:

Does not provide a centralized, holistic view.

Lacks the ability to manage multiple servers and chassis collectively.

Conclusion: Not appropriate.

Dell Operate Reference

Server Management and Configuration Tools (14%)

Explain the management interface options - LCC, racadm, OMSA, iSM, OME: Understanding the capabilities and limitations of various management tools is essential for selecting the appropriate solution.

System Administration (18%)

Group management: OpenManage Enterprise facilitates group management of diverse hardware.

Conclusion

OpenManage Enterprise (OME) is the recommended solution. It provides a unified management console capable of holistically managing and monitoring the customer's storage, server, and network environment, including both rack servers and modular chassis.

Answer : A

To generate and save a SupportAssist collection with system information and debug logs only in the iDRAC UI, follow these steps:

Step-by-Step Guide:

Access SupportAssist in iDRAC:

In the iDRAC interface, navigate to the Maintenance tab in the top menu.

From the dropdown, select SupportAssist. This will bring up the SupportAssist options.

Initiate a Collection:

In the SupportAssist section, look for the option to Create a New Collection or Start a Collection.

Choose Collect System Data or Generate a Collection, depending on the version of iDRAC.

Select Collection Components:

When prompted to select components for the collection, check the boxes for System Information and Debug Logs only.

Ensure no other components are selected to limit the collection to just the required data.

Start the Collection:

Confirm your selection, then click Start or Generate. This will initiate the process to gather the specified data from the system.

Save the Collection Locally:

Once the collection is complete, you should see an option to Download or Save the file.

Click the download link and save the collection file locally on your computer.

Verify the Collection File:

Check the downloaded file to ensure it contains only the system information and debug logs. It should be in a format such as ZIP or TAR, depending on the system configuration.

By following these steps, you can successfully generate a SupportAssist collection with just the system information and debug logs and save it to your local system for further review or support purposes.
