Get Axis ANVE Exam Practice Questions - Real and Updated

Answer : C

When upgrading an analog system to IP using encoders, the end of the analog signal must be terminated with a 75 resistor. This standard impedance ensures proper signal transmission and prevents signal reflections that can degrade the video quality. Terminating the signal correctly is crucial for maintaining the integrity of the video feed in an analog to IP conversion. For more information, refer to Axis Communications' technical documentation on analog to IP conversion and signal termination.

Answer : C

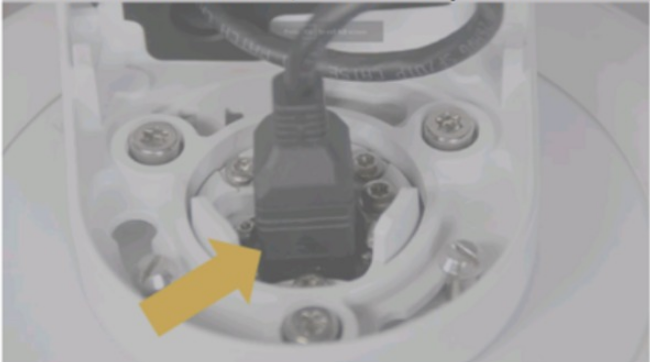

For outdoor cameras, not using the proper connectors, such as weatherproof or waterproof connectors, can lead to water ingress. This can damage the camera's internal components, leading to malfunctions or complete failure of the device. Axis outdoor cameras are designed with specific connectors to ensure they are sealed against environmental factors like moisture, dust, and temperature extremes. According to Axis installation guides, ensuring the correct connectors are used is crucial for maintaining the camera's IP rating and long-term reliability.

Answer : D

The AXIS M3204 is a cost-effective mini dome camera with a varifocal lens. It does not include DC-iris or audio capabilities, making it suitable for the specified requirements. The other options either include additional features that are not needed or do not meet the cost-effectiveness criteria. For detailed product specifications, refer to Axis Communications' datasheets and product catalogs.

Answer : B

View areas enable multiview streaming by allowing users to stream different parts of the camera's field of view simultaneously. This includes the ability to stream both optically zoomed-in views and the full, normal views at the same time. This feature enhances monitoring flexibility and situational awareness by providing multiple perspectives from a single camera feed. Axis documentation on multiview streaming explains how view areas can be configured to deliver both zoomed and wide-angle views concurrently, facilitating comprehensive surveillance.

Answer : A

Closing the aperture at a fixed focal length increases the f-number (aperture value), resulting in a longer depth of field. This means that a greater portion of the scene will be in focus, both in the foreground and background. A higher f-number indicates a smaller aperture, which allows less light to enter the lens but enhances the sharpness and clarity of the image over a larger depth. Reference: Axis Communications camera optics and image quality documentation.
