Answer : A

Set DVIEW Twist Angle:

Type DVIEW in the command line and press Enter.

Select the object (or type TW for Twist).

Enter 37 for the twist angle.

Set SNAPANG Value:

Type SNAPANG in the command line and press Enter.

Enter 37 for the snap angle.

Verify UCS Alignment:

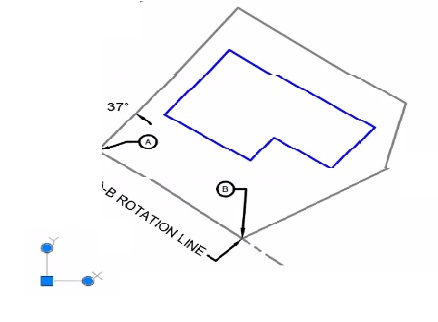

Ensure the UCS icon is aligned parallel to the A-B rotation line.

Draw the building relative to the aligned UCS.

AutoCAD Documentation on DVIEW and SNAPANG

Autodesk Knowledge Network: Setting Up the UCS in AutoCAD

Answer : B, C, D

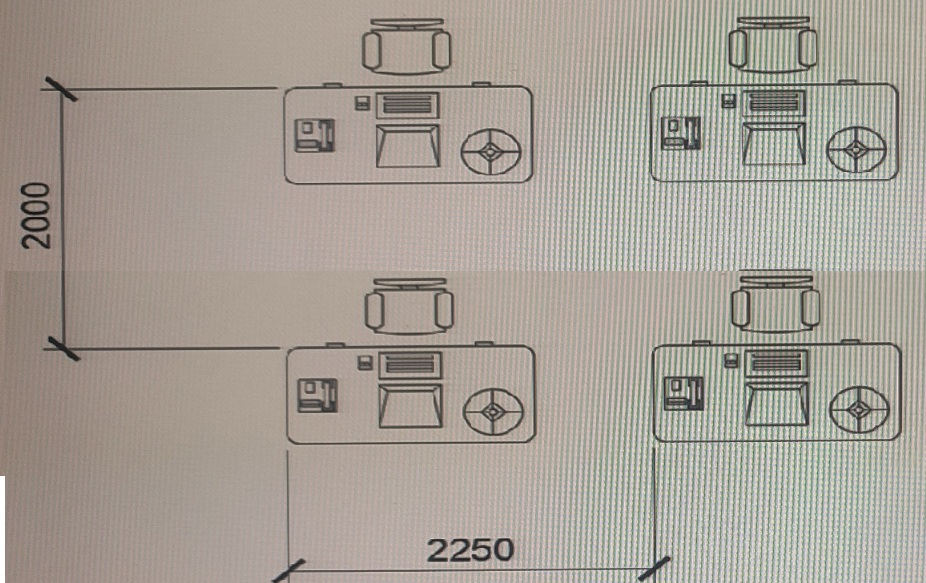

According to the search results123, a rectangular array command creates copies of objects in a regularly spaced rectangular pattern. You can adjust the spacing and number of rows and columns by dragging the grips on the array preview or modifying values on the Array context ribbon.

https://knowledge.autodesk.com/support/autocad/learn-explore/caas/CloudHelp/cloudhelp/2020/ENU/AutoCAD-Core/files/GUID-181BF535-D6F4-4B90-B04D-EB99C5488DAB-htm.html

Answer : C

Identify the Open Gaps:

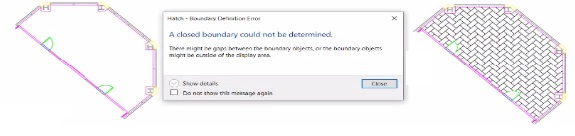

The error message indicates that there are gaps between the boundary objects.

Zoom into the area where the hatch is to be applied and inspect the boundary for any visible gaps or discontinuities.

Use the JOIN Command:

In AutoCAD, type JOIN in the command line and press Enter.

Select the boundary objects that define the area to be hatched.

The JOIN command will combine collinear segments and close any small gaps between the objects, creating a continuous boundary.

Reapply the Hatch:

After using the JOIN command, attempt to hatch the area again by typing HATCH in the command line and selecting the boundary.

The continuous boundary should now be recognized, allowing the hatch to be applied without errors.

AutoCAD Documentation on the JOIN command: JOIN Command

Answer : B

Understanding Online Collaboration:

AutoCAD offers several tools for online collaboration, allowing users to share drawings with others who may not have AutoCAD.

SHARE Command:

The SHARE command in AutoCAD generates a link to the drawing file that can be shared via email or other means.

Recipients can view the drawing in a web browser, and those with permissions can edit and save a copy.

Steps to Share Drawing:

Save the drawing.

Use the SHARE command.

Configure sharing settings, including permissions for viewing or editing.

Generate and share the link with recipients.

Conclusion:

For online collaboration, use the SHARE command to generate a shareable link for viewing and editing the drawing file.

AutoCAD User Guide on Sharing Drawings Online.

AutoCAD Help Documentation on SHARE Command.

Answer : B

In AutoCAD, when managing sheets and layouts, different properties are used to control and organize sheet information.

Sheet Custom Property: This property allows you to define custom information specific to each sheet or layout. It is used for unique identifiers that are not globally applied to the entire sheet set but rather specific to individual sheets.

Setting the Property:

Open the Sheet Set Manager.

Right-click the sheet and select Properties.

Add a custom property for the sheet number based on discipline (e.g., C001).

Define the Custom Property:

In the Properties dialog, add a new property for the sheet number.

Enter the value (e.g., C001) for the specific sheet.

Using a Sheet Custom Property ensures that each sheet has a unique identifier that can be easily managed and referenced.
