Answer : A

Transducer beam divergence is influenced by the aperture size and frequency. A smaller aperture and lower frequency result in greater beam divergence. Among the given options, the transducer with a 4 mm aperture and 4 MHz frequency will have the greatest divergence. This is because the smaller aperture size contributes to a wider beam spread, and the lower frequency also increases the divergence compared to higher frequencies. Reference:

ARDMS Sonography Principles and Instrumentation guidelines

Kremkau, F. W. (2015). Diagnostic Ultrasound: Principles and Instruments. Elsevier.

Answer : C

Temporal resolution is improved by increasing the frame rate. One way to increase the frame rate is by decreasing the packet size (also known as ensemble length) in color Doppler imaging. The packet size refers to the number of pulses used to determine the Doppler shift at each location. A smaller packet size means fewer pulses are required, which allows for quicker data acquisition and thus a higher frame rate. Increasing the field of view, decreasing transmit frequency, and increasing line density would all decrease the frame rate and thus degrade temporal resolution. Reference:

American Registry for Diagnostic Medical Sonography (ARDMS) Sonography Principles and Instrumentation guidelines.

Answer : B

Range ambiguity artifact occurs when echoes from one pulse are received after the next pulse has been emitted, leading to the incorrect placement of echoes at shallower depths than their true location. This artifact typically happens when the PRF is set too high, causing the ultrasound system to interpret delayed echoes as coming from the current pulse rather than the previous one. This results in reflectors appearing closer to the transducer than they actually are.

ARDMS Sonography Principles & Instrumentation Guidelines

Kremkau FW. Sonography Principles and Instruments. 9th ed. Philadelphia, PA: Elsevier; 2016.

Answer : A

Comprehensive and Detailed Explanation From Exact Extract:

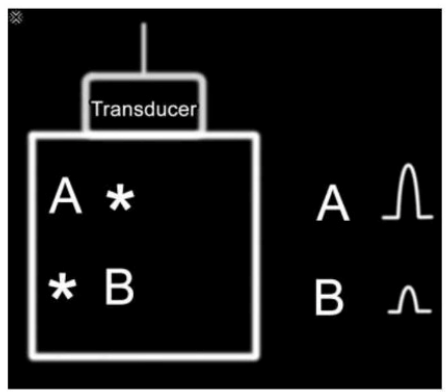

As ultrasound travels through tissue, it experiences attenuation --- a reduction in signal amplitude due to absorption, scattering, and reflection. The deeper the reflector, the greater the attenuation. Therefore, the signal from reflector B (deeper structure) is weaker than from reflector A (shallower structure) primarily due to attenuation.

According to Principles and Instrumentation:

'Attenuation is the reduction in ultrasound beam strength as it propagates through tissue, resulting in decreased signal amplitude from deeper structures.'

Elasticity affects stiffness but not amplitude directly.

Propagation speed differences cause refraction or displacement, not amplitude changes.

Acoustic impedance differences cause reflection strength variations at interfaces but do not account for depth-dependent amplitude reduction.

Therefore, the correct answer is A: Attenuation.

Answer : A

Comprehensive and Detailed Explanation From Exact Extract:

Lateral resolution is the system's ability to distinguish two structures side-by-side. It is directly determined by the beam width --- the narrower the beam, the better the lateral resolution.

Principles and Instrumentation:

'Lateral resolution depends on beam width at a given depth. Narrower beams provide better lateral resolution.'

Depth of penetration influences maximum imaging depth.

Propagation speed is largely constant in soft tissue.

Wavelength affects axial resolution.

Therefore, the correct answer is A: Beam width.

---
