A network administrator wants to permit explicit SSH, FTP and HHTP(s) access to servers in the 10.100.20.5 to 10.100.20.31 range, all devices in 10.100.21.0/24 network, and a host with IP address 10.100.22.70. The services must work properly at all times.
Which configuration scripts accomplish this task with the fewer number of lines, while avoiding access to other devices not included in these ranges? (Choose two.)
Refer to the exhibits.
Exhibit 1
Exhibit 2
A network administrator adds a new Mobility Controller (MC) to the production Mobility Master (MM) and deploys APs that start broadcasting the employee SSID in the West wing of the building. Suddenly, the employees report client disconnects. When accessing the MM the network administrator notices that the MC is unreachable, then proceeds to access the MC's console and obtains the outputs shown in the exhibits.
What should the network administrator do next to solve the current problem?

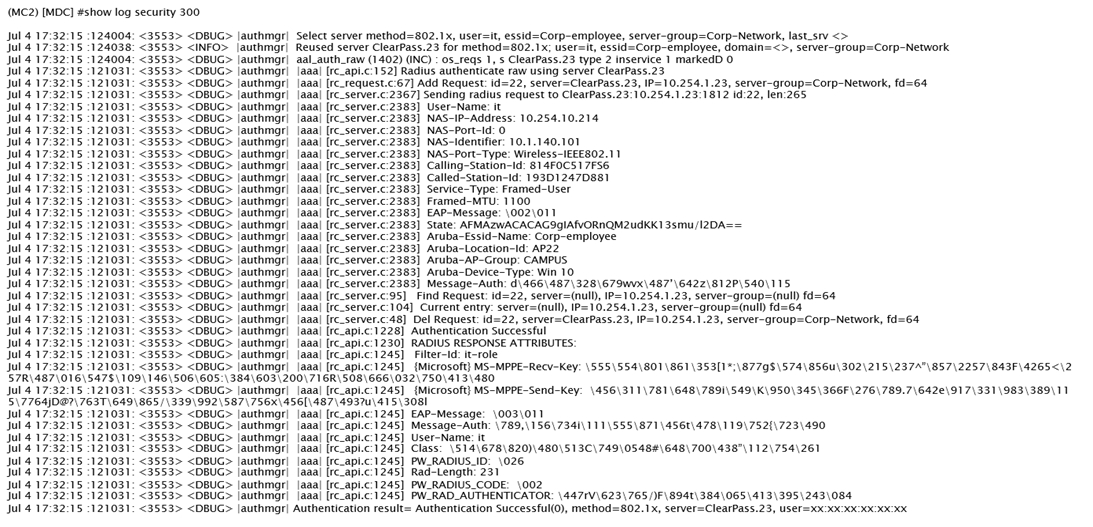

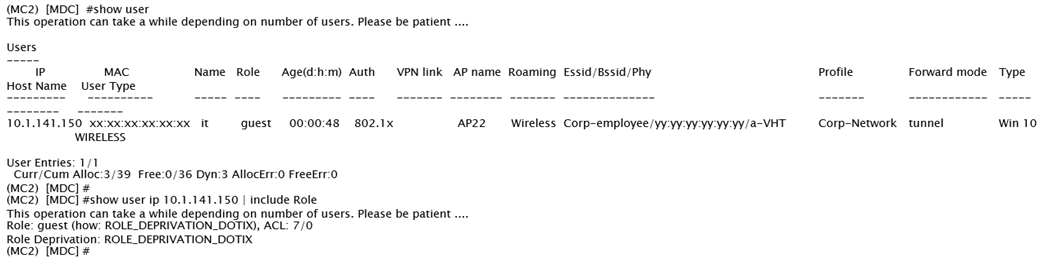

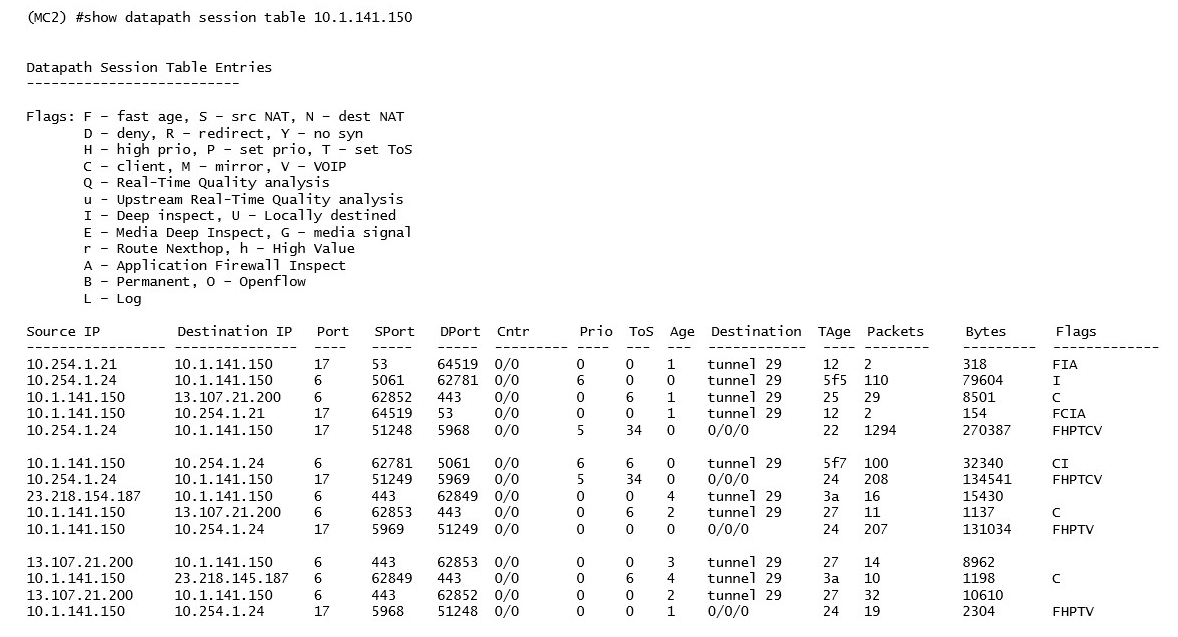

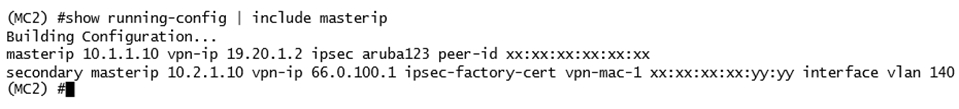

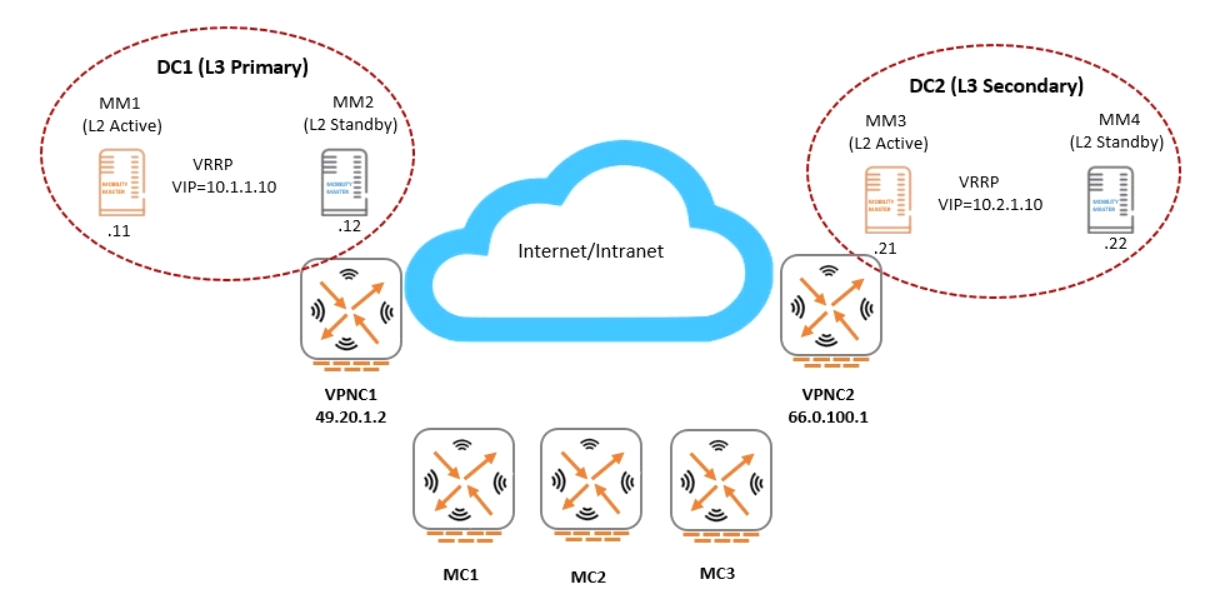

Refer to the exhibit.
A network administrator has a Mobility Master (MM) Mobility Controller (MC) architecture along with the MC in the DMZ for terminating RAPs. The network firewall has been provisioned to allow access to the MC in the DMZ for both UDP 500 and 4500. Then he proceeds to provision an AP as shown in the exhibit.
Which additional configuration steps must the administrator to assure RAPs successfully contact the MC? (Choose two.)
An organization wants to deploy a WLAN infrastructure that provides connectivity to these client categories:
* Employees
* Contractors
* Guest users
* Corporate IoT legacy devices that support no authentication or encryption
Employees and contractors must authenticate with company credentials and get network access based on AD group membership. Guest users are required to authenticate with captive portal using predefined credentials. Only employees will run L2 encryption.
Which implementation plan fulfills the requirements while maximizing the channel usage?
A joint venture between two companies results in a fully functional WLAN Aruba solution. The network administrator uses the following script to integrate the WLAN solution with two radius servers, radius1 and radius2.
While all users authenticate with username@domainname.com type of credentials, radius1 has user accounts with the domain name portion.
Which additional configuration is required to authenticate corp1.com users with radius1 and corp2 users with radius2?
